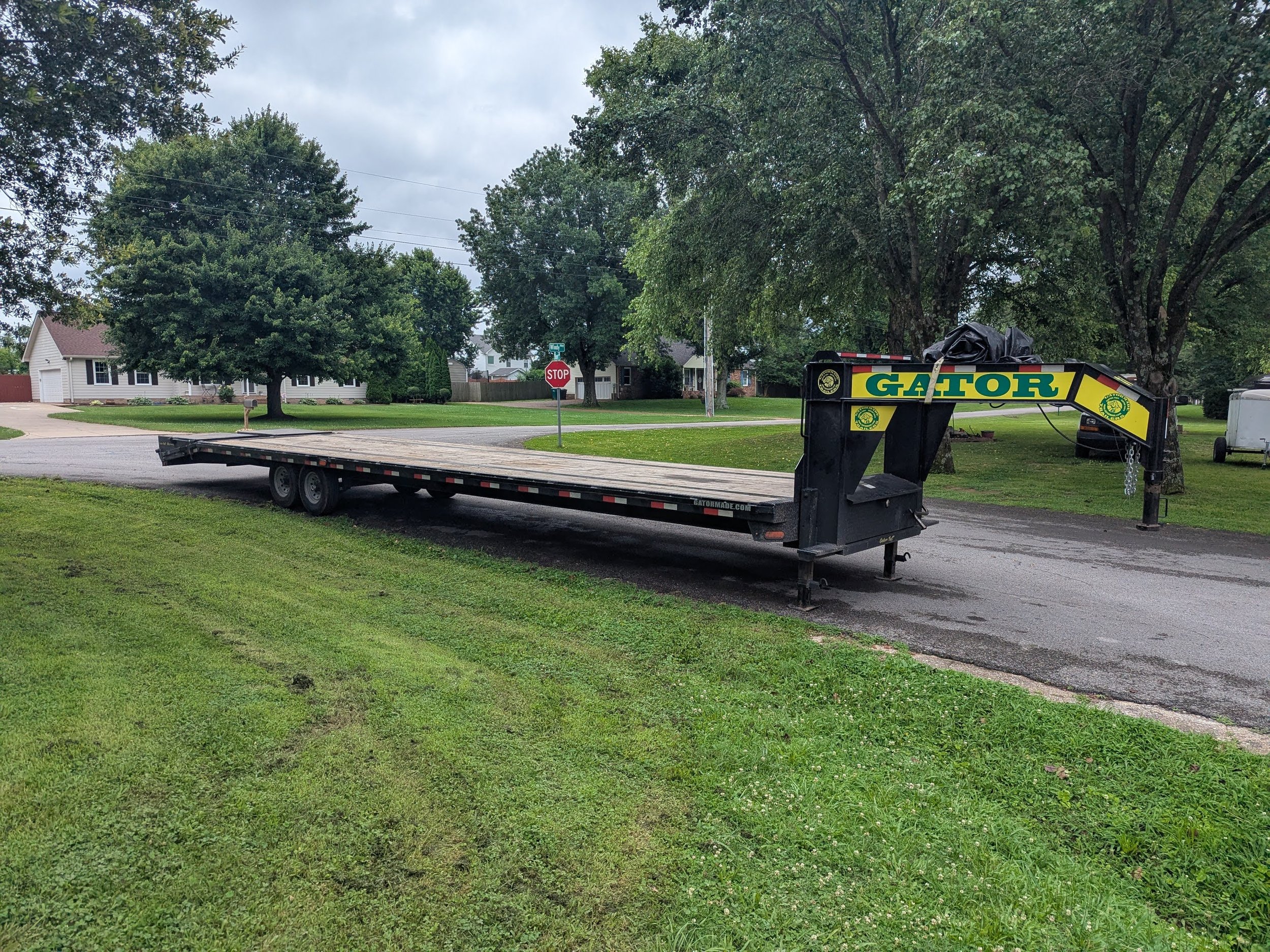

40 FT Gooseneck Deckover 35’ + 5’ Dovetail w/Ramps 16K

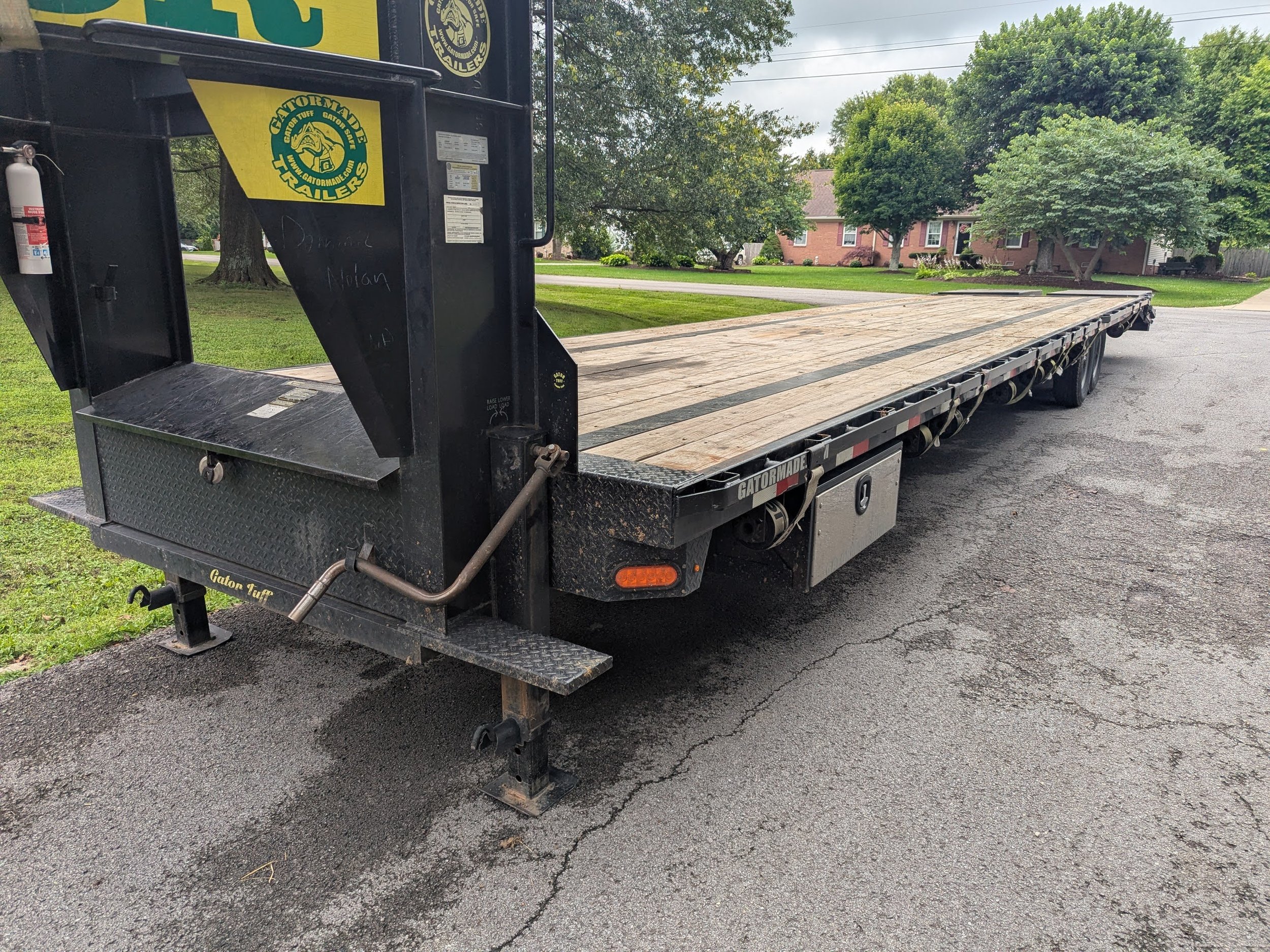

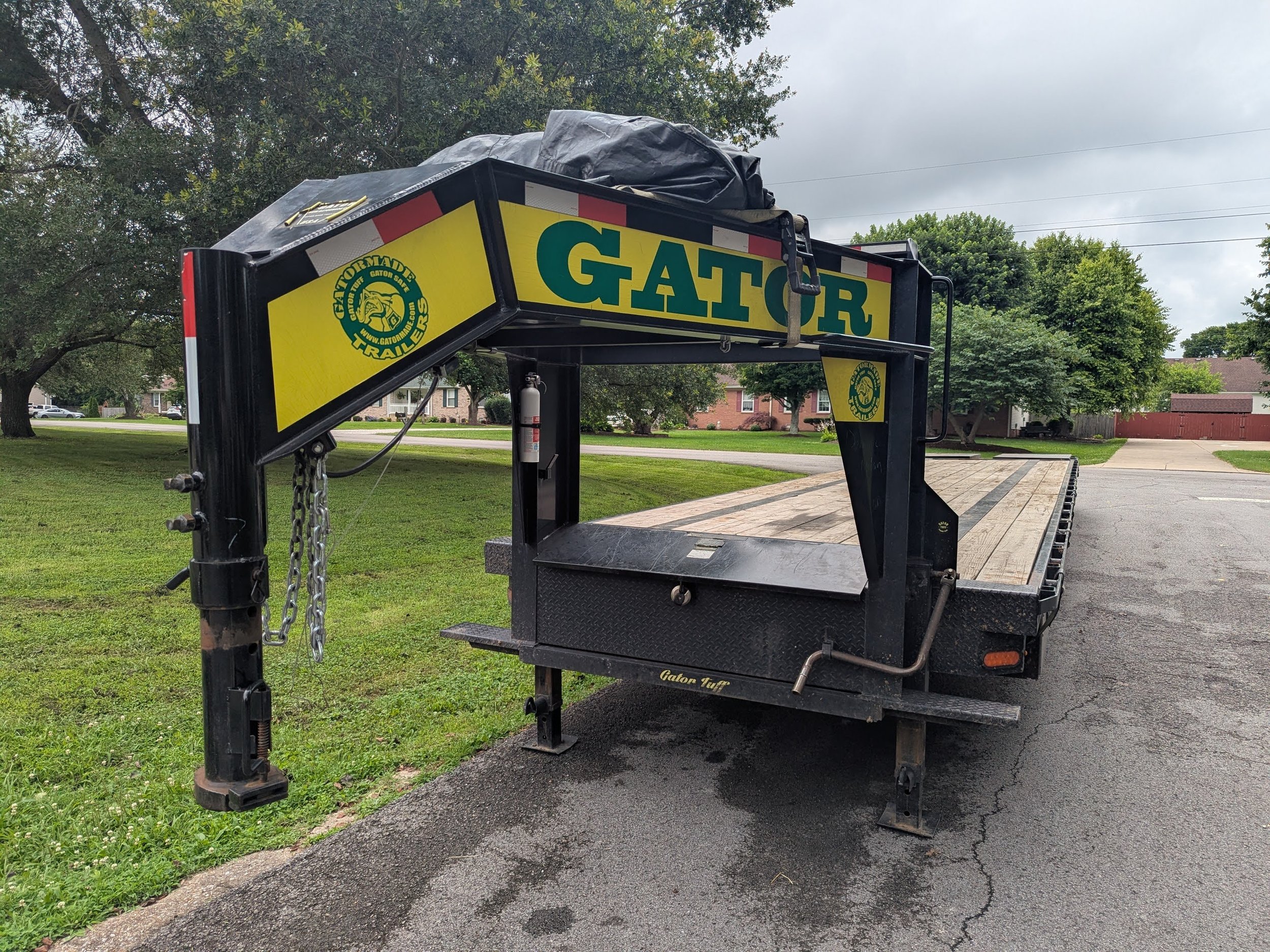

Maximum street legal width of 8.5 FT. This trailer has massive ramps which measure 10 FT in length including the dovetail. Huge lockable toolbox in the neck and a stainless steel underbody mounted tool box as well. 14-ply tires for trouble-free service with spare included. 30” Rear LED light bar for loading. A 3/4 Ton Truck or better with a bed mounted gooseneck hitch is required to pull this trailer.

Size of ball required: GOOSENECK 2 5/16”

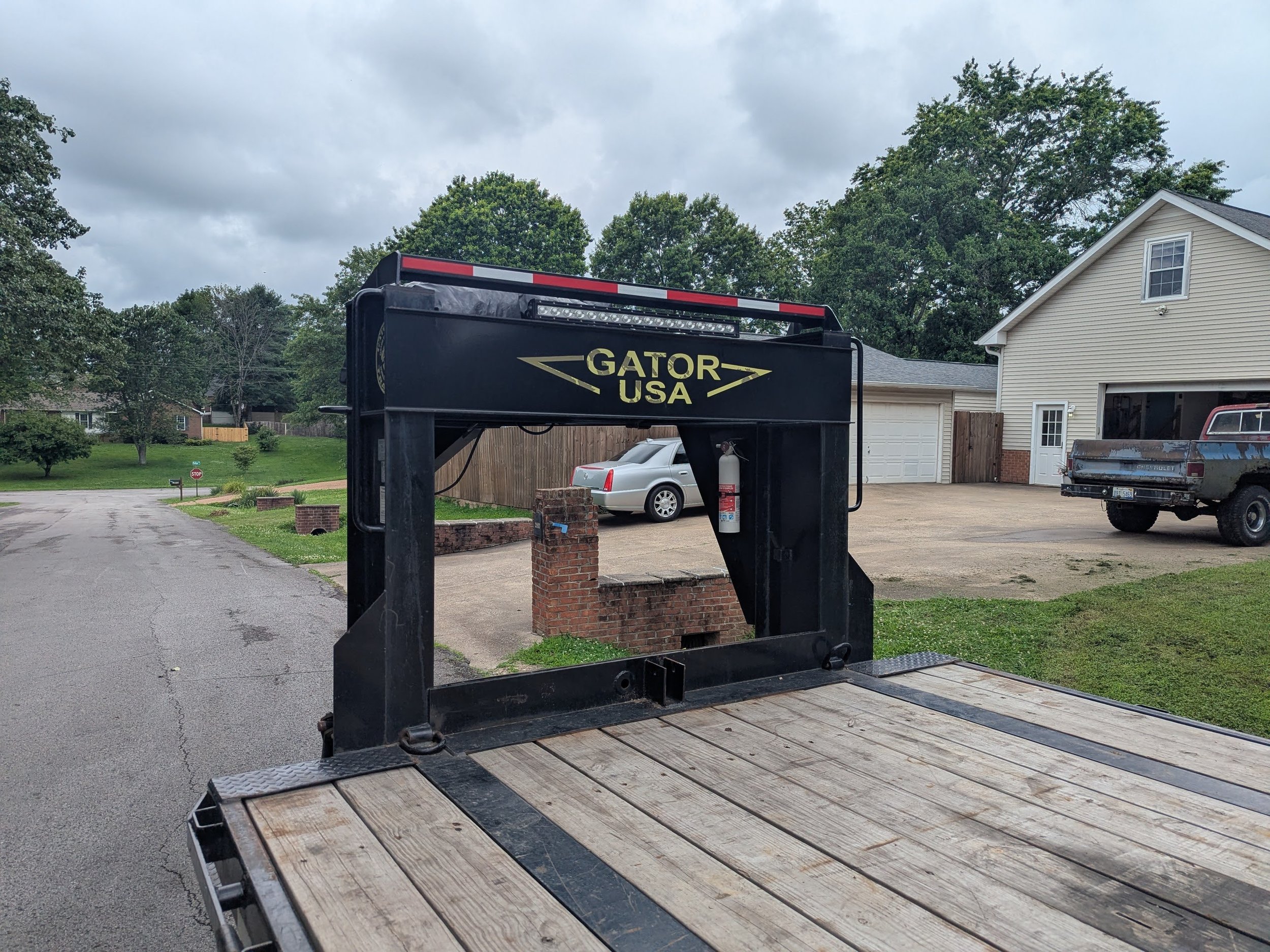

Frame 14 Inch Beam and 12 Inch Neck

Lighting Connector: 7-way Round

2 Braking Axles

(2) 12K Single Speed Jacks

Stake pockets and strap rail with (10) frame mounted 4” straps

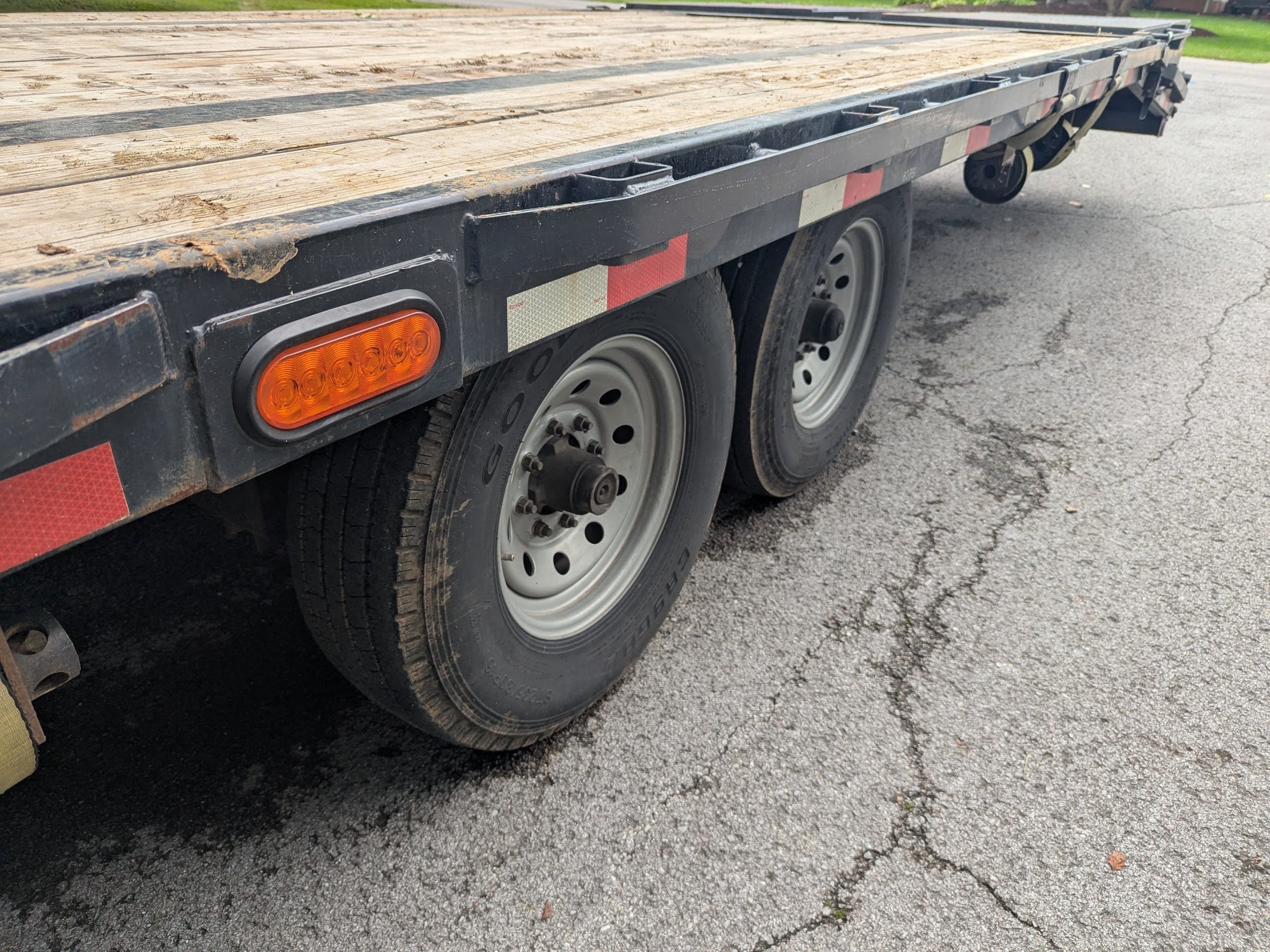

Tires 14 Ply with maximum allowable tire pressure: 80 PSI

Trailer Weight: 7,700 LBS

Maximum Cargo Capacity: 16,000 LBS

Ramps 40 Inch Triple Spring Assisted Goliath Big Ramps

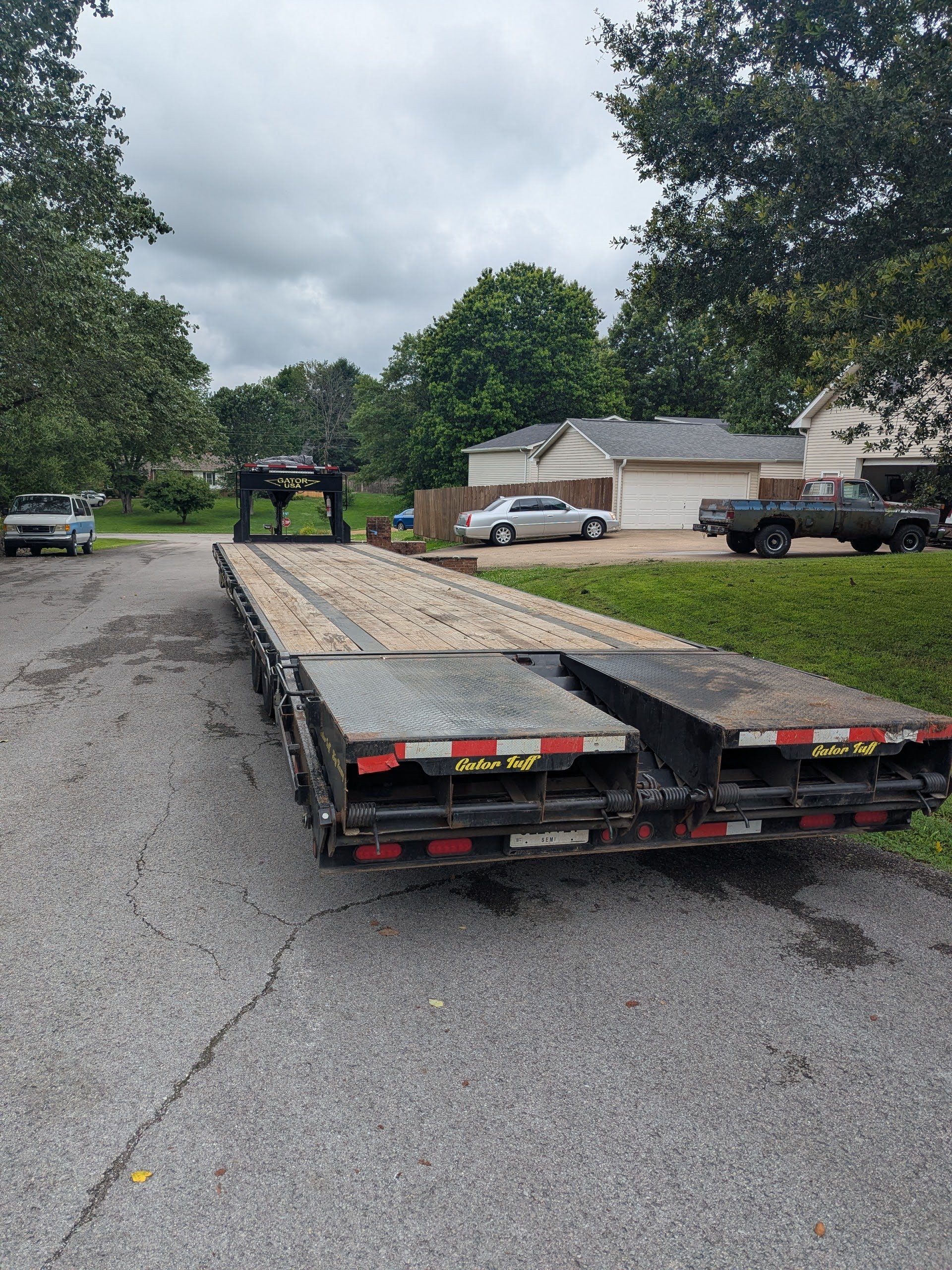

Dovetail + Ramp Length is 10 FT

Deck Height is 33”
